Refuelling solutions

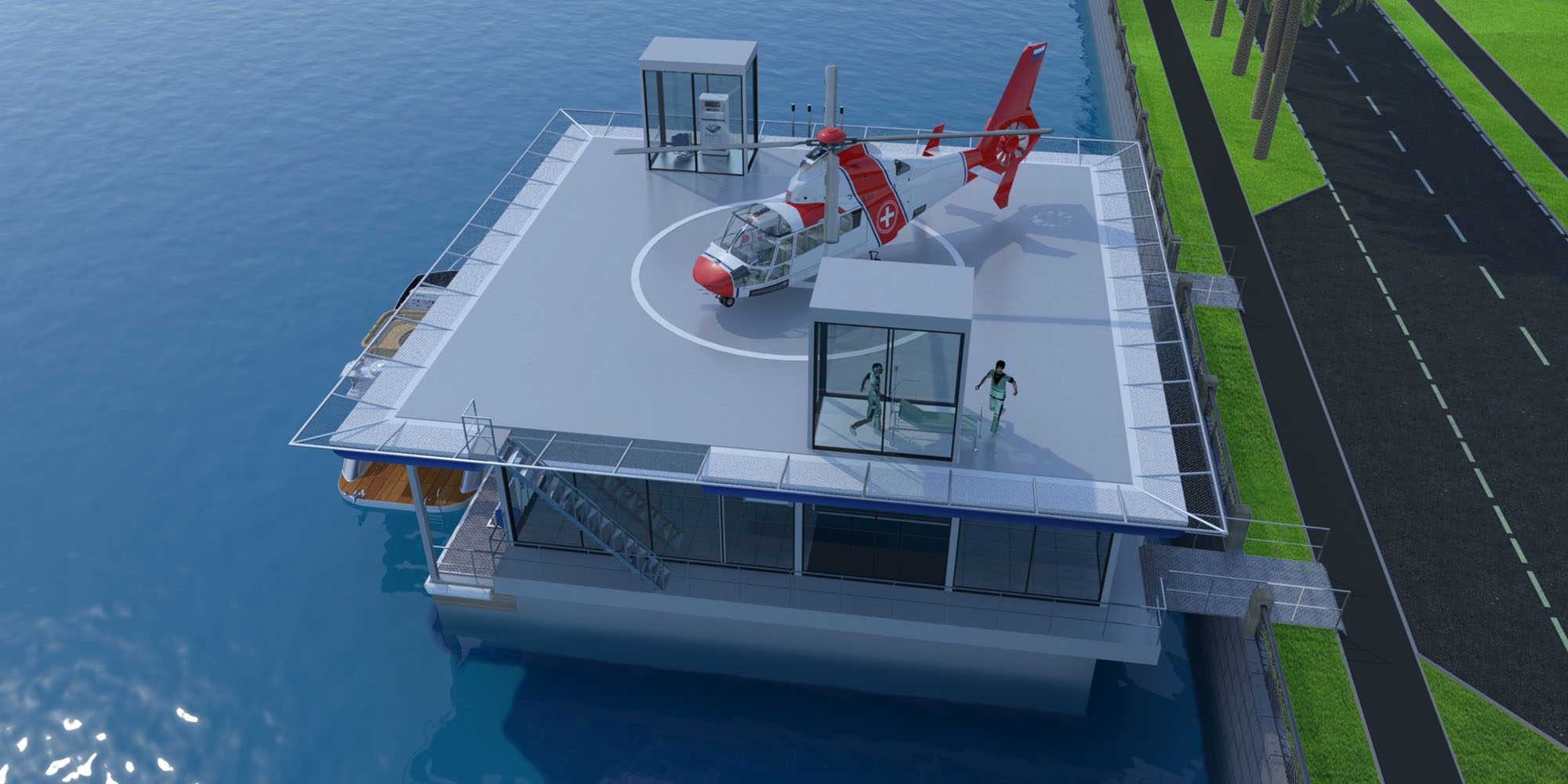

Refilling Complex for Helicopters and Boats


Nowadays the infrastructure of any big city needs helipads for emergency evacuation of injured people, but this is not always feasible. Combining a set of sophisticated technological decisions and ten years of experience, Baltic Floating Structures offers a universal floating refilling complex which besides the helipad  provides a convenient and safe process of  both air and water transport refuelling. In the same time visitors have an opportunity to use services of a convenience store, shower and toilet. The Refilling Complex is also equipped with special elevators – one for fuel-dispensing system, another – for people.

Refilling Complex has the following characteristics:


  • Double-walled fuel tank of 120 m3;
  • The station is intended for installation in sea and fresh waters;
  • Possibility to refuel air and water transport with the following fuel types – 100 LL and Jet A for helicopters; 95, diesel fuel, LPG for water transport;
  • The high standards of ecological and fire safety corresponding to all directives of EU;
  • Reinforced concrete hull ensures the maintenance-free operation for 50-70 years;
  • The station has an integrated lightning rod;
  • The Refuelling Complex is installed with anchors or piles;
  • Low FDU zone, for convenient and safe water transport refuelling, as well as minimization of environmental contamination risks;
  • Mini-market, as additional income source;
  • Helipad area of 15 m x 15 m.
Refilling Complex for Helicopters and Boats

Total Area

15 m х 15 m

Hull Lifetime

50 - 70 years


1,5 m

Docking Weight

350 t

Hull Structure

monolithic reinforced concrete hull


2 m

Fuel Tank (double-walled)

120 m³

Types of Fuel

95, 98, diesel, LPG


165 m2

Ship Class

AT I.W.W. Pontoon With descriptive note: Bunker station suitable for storage of gas oil/diesel oil (UN 1202) and Benzine (UN 1203) in under deck tanks

Installation Location

In wave protected areas, as well as ports and marinas

Fuel Dispensing Units


Helicopter landing field

15 m x 15 m

 *technical parameters can be changed according to clients individual requirements

Helicopters & boats
