Refuelling solutions

Self-propelled Refuelling Complex

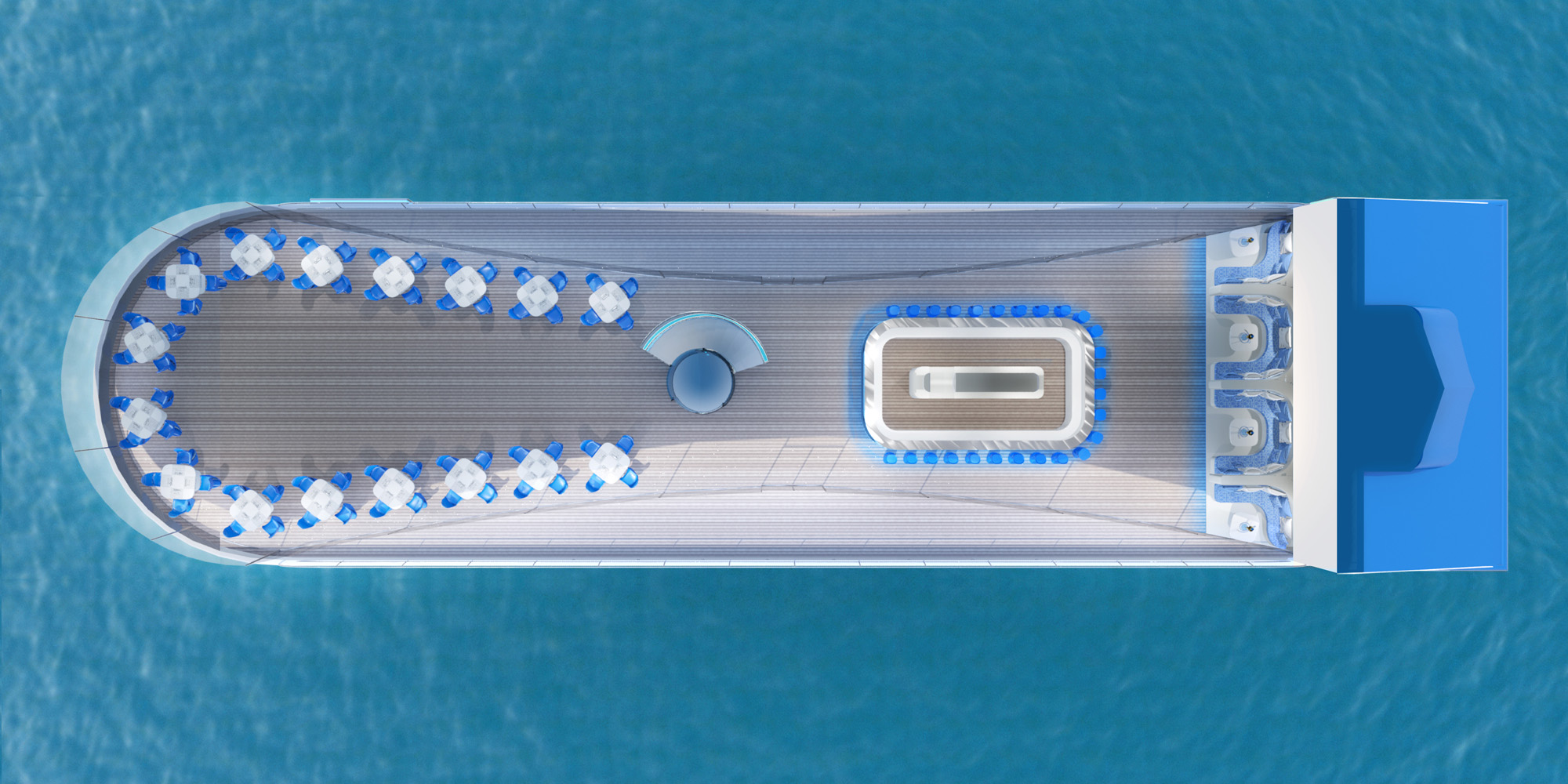

Self-propelled Refuelling Complex Baltic Floating Structures is the embodiment of the highest standards of environmental and fire safety, technological developments, and luxury.

Built on the base of reinforced concrete hull the Self-propelled Refuelling Complex is designed for refuelling of yachts, boats and jet skis with 3 fuel types - benzine, diesel and LPG.

The complex has all the necessary amenities on its board for the maximum comfort of the visitors, such as a restaurant, bar, convenience store, toilet, showers and more. BalticFS Self-propelled Refuelling Complex can simultaneously refill 2 mega yachts and 2 jet skis. Special elevators are installed on the board for people with disabilities. The complex is equipped with a small parking lot for jet skis.



Self-propelled Refuelling Complex has the following characteristics:

  • Double-walled fuel tank;
  • Possibility to refuel with 3 fuel types – 95, DD, LPG
  • The high standards of ecological and fire safety corresponding to all directives of EU;
  • Reinforced concrete hull ensures the maintenance-free operation for 50-70 years
  • Possibility to run on LPG;
  • The station has an integrated lightning rod;
  • The refuelling process of the floating fuel station can be carried out both with a fuel truck and with a bunkering vessel;
  • Mini-market, as an additional income source;
  • Low FDU zone, for convenient and safe water transport refuelling, as well as minimization of environmental contamination risks.
  • Is equipped with a parking lot for 5 jet skis
  • Spacious restaurant and bar on the board
  • Toilet and shower are installed on the board
Model Self-Propelled Refuelling Complex

Total Area

48 m х 12 m

Hull Lifetime

50 - 70 years

Freeboard

1,5 m

Docking Weight

1,100 t

Hull Structure

monolithic reinforced concrete hull

Draft

2 - 2,5 m

Fuel tank (double-walled)

260 m3 for DD и 95; 15,2 m3 for LPG

Types of Fuel

95, diesel, LPG

Mini-market

46 m2

Restaurant and bar

250 m2 (approximatley on 100 people)

Lobby

42 m2

Kitchen

30 m2

Storage

18 m2

Ship Class

+100 A1 Specified coastal Service UMS Oil tanker ESP + LMC

Navigation Area

In wave protected areas, as well as ports and marinas

Fuel Dispenser Units

4

Parking Lot for Jet Skis

5

*technical parameters can be changed according to clients individual requirements
